Lightnovo Confocal Raman Microscopes
Raman spectroscopy is a powerful, non-destructive technique used across many scientific and industrial fields. Rave Scientific offers cost effective and unique Lightnovo Raman confocal microscopes. Manufactured in Denmark the Lightnovo Raman microscopes all incorporate a built-in reference calibration channel that automatically corrects Raman shift and laser intensity drift in real time without external standards. This ensures high accuracy and repeatability across long acquisitions or mapping sessions. All Lightnovo systems are designed to support a wide range of applications.
- Application Area
- Materials Science
- Life Sciences & Pharma
- Polymers & Plastics
- Semiconductors & Electronics
- Geology & Mineralogy
- Art & Cultural Heritage
- Forensics
- Battery & Energy Storage
- Typical Uses
- - Phase identification, crystallinity, polymorph detection, stress/strain mapping
- - Cell imaging, drug formulation, ingredient distribution, polymorphism
- - Blend analysis, degradation, microplastics identification
- - Strain analysis, doping levels, 2D materials like graphene
- - Mineral ID, mapping rock inclusions, gemstone analysis
- - Pigment analysis, varnish identification, authenticity assessment
- - Trace materials, drug detection, counterfeit analysis
- - Solid electrolyte interfaces, graphite/anode materials, degradation tracking

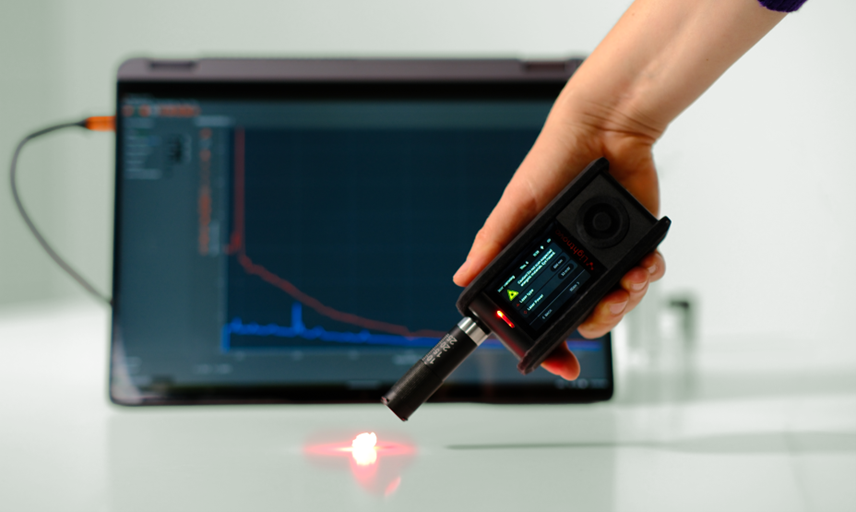

miniRaman Handheld Spectrometer and Confocal Microscope
“The world’s smallest confocal and modular Raman microscope”
Key traits: Compact, portable, real-time calibration
Ideal for:
- Field and mobile lab use
- Supports three laser options (660 nm, 785nm and 830 nm)
- miniRAMAN Pro can support dual lasers (660 nm and 785nm)
- Routine quality control in pharma or plastics
- Small-scale mapping of biological or material samples
- Rapid identification of microplastics or mineral phases
- High-performance Raman imaging with spatial resolution down to ~800nm.
- Built-in reference calibration channel for automatic correction of Raman shift and intensity.
- Dual mode: upright/inverted microscope switch.
- Modular with motorized XYZ stage and white-light imaging.
- Ideal for portable labs, education, and routine material analysis.
RG Confocal Raman Microscope
Key traits: High spatial resolution, modular, large mapping area
Ideal for:
- Field and mobile lab use
- Detailed 2D/3D mapping in biological tissues or materials
- Semiconductor thin film analysis
- Can be configured with five laser options (405, 532, 633, 785 and 830nm)
- Composite and multilayer polymer research
- Mapping pharmaceutical tablets or creams
THOR Research-Grade Raman Microscope
- Flagship system with mirrorless beam path, diffraction-limited optics, and fast optical shutter.
- Supports up to four laser lines (457, 532, 633, 785nm).
- Features polarized Raman and quantitative orientation mapping (RICO).
- Built for high-end materials science, including Stokes/anti-Stokes, low-frequency, and 3D mapping.
- Ideal for research institutions and industry labs needing maximum flexibility and precision.
In Summary
- miniRaman = Portability + simplicity → ideal for education, QC, and field analysis.
- RG = High-res imaging & modular design → suited for bio, pharma, and material mapping.
- THOR = Full-featured research platform → best for complex, quantitative studies involving orientation, strain, and advanced materials.
