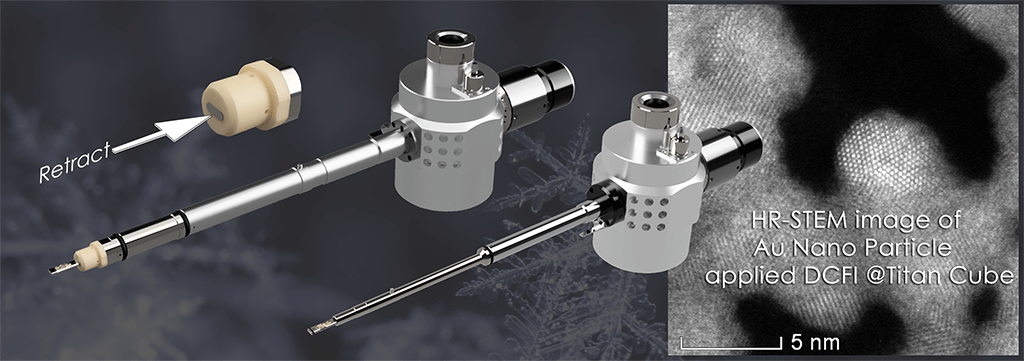

MEL-BUILD Double tilt LN2 Atmos Defend Holder
Ideal for battery research the Mel Build Defend Atmos Defend holder provides high stability which is essential for acquiring atomic-scale information by transmission electron microscopy (TEM). This is especially true in the case with materials that are susceptible to beam damage that require cooling to Cryogenic temperatures. The MEL-BUILD Double tilt LN2 Atmos Defend Holder is designed specifically for the material scientist. Ideal for Lithium-Ion Battery research this newly designed Double Tilt LN2 TEM holder incorporates a specially designed vacuum transfer system and a proprietary mechanical drift cancellation controller. This combined with a high precision temperature controller which range is ± 0.005°C allows for stable and repeatable acquisition of data. In addition, the double tilt mechanism allows the TEM microscopist to match the crystal orientation, making it the only LN2 TEM holder in the world that allows atomic resolution observation. The unique design features of the Mel Build Atmos Defend holder are as follows:
- An integrated vacuum transfer design that supports the transfer of oxygen sensitive materials from a glove box after loading the sample into the TEM holder, directly to the TEM.
- Double Tilt Capability with Ln2-This is ideal for the material scientist and battery research.
- Proprietary Mechanical Design-This contributes to stability when imaging at extremely high magnifications on battery materials.
- Power Supply Cooling Module-The Mel Build proprietary cooling module supports maintaining a stable temperature when the material is cooled.
| Component | Double-tilt, LN2 Cooling and Vacuum Transfer | |
|---|---|---|
| Ultimate temp | -160°C | |
| Reaching time | : 60min | |
| X tilt | : ±25° | |
| Y tilt / Min step | : ±20°/ 0.05° | |
| Sample set | : Smart Set System | |
| Coolant LN2 | : replenish LN2 repeatedly | |
| TEM | : JEOL PP type HR/FHP/UHR Thermofisher |
|

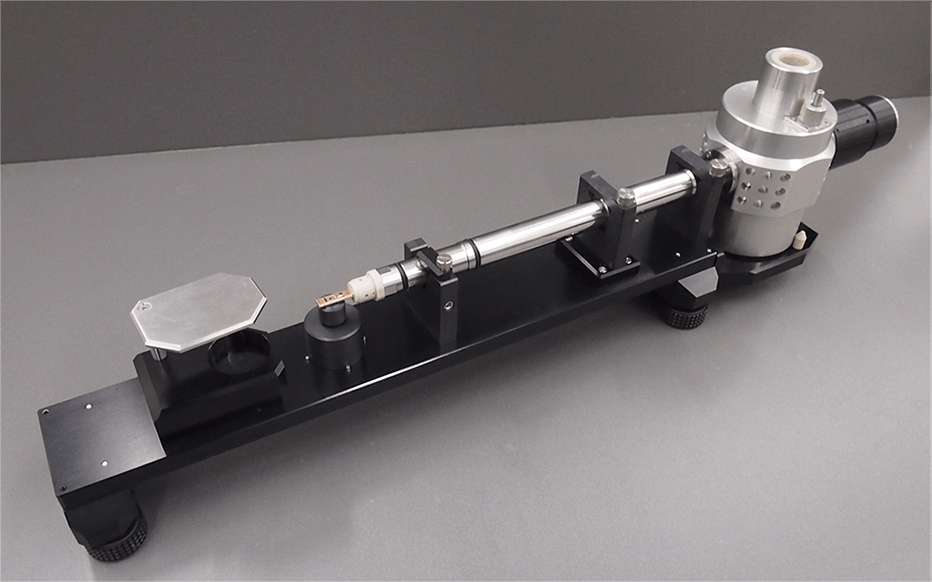

| TFS | Include item: Temp. controller, Y tilt controller, Software, Safety Operation Stand of TEM holder introduce. |
|

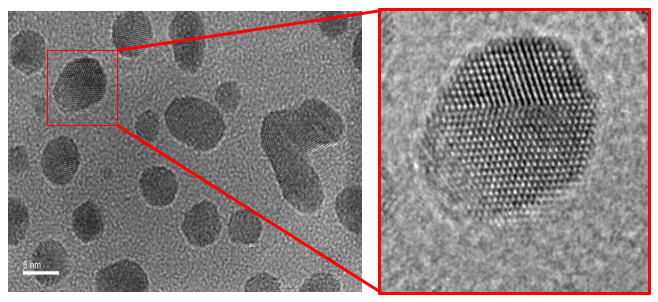

HR-TEM observation Au nano particles on cross grating was performed immediately after temperature reached in -170 ℃ (cooling time 60 min). Image collected on the JEOL ARM 200F TEM.

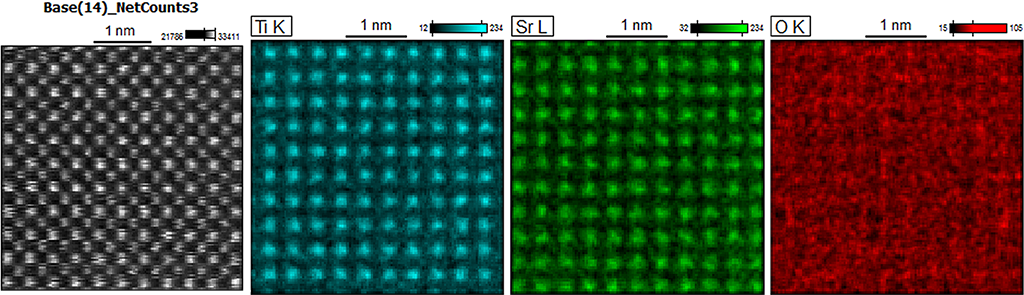

EDS mapping of SrTiO3 using the MEL-BUILD LN2 cooling holder. Images care of Dr. Kumamoto, Dr. Nakayama, Dr. Ishikawa and Prof. Shibata Prof. Ikuhara of the University of Tokyo.

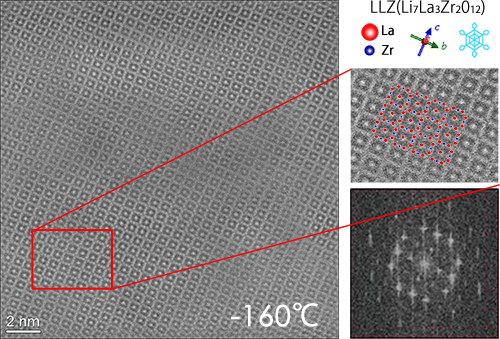

The above image is an Atomic resolution STEM image of LLZ(Li7La3Zr2O12), From this result, it was proven that the non-exposure (Vacuum Transfer) was successful. The crystal orientation was adjusted by Y tilt, and the electron beam damage was reduced by cooling of -160°C. Cooling and stability was achieved in 60 minutes.
