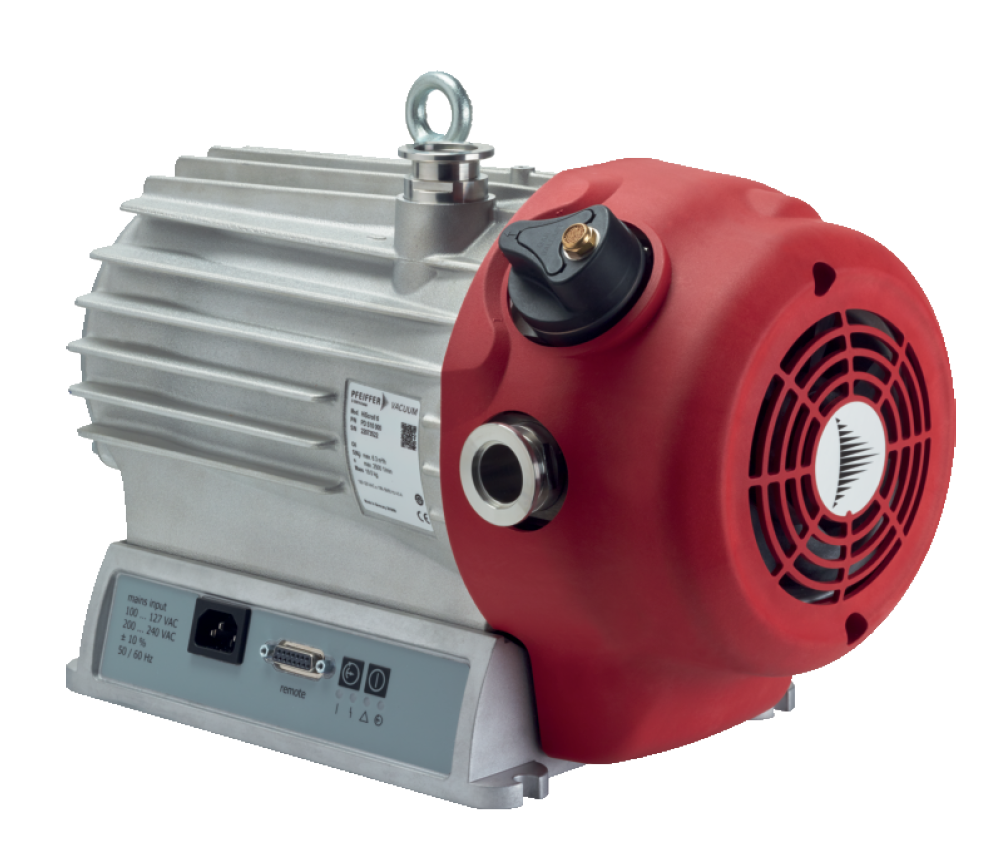

Pfeiffer HiScroll - the oil-free vacuum pumps

Pfeiffer HiScroll - the oil-free vacuum pumps

The HiScroll series consists of three dry and hermetically sealed scroll pumps with a nominal pumping speed of 6 - 20 mÑ/h. The pumps are characterized in particular by their high efficiency and low noise level. The pumps are characterized in particular by their high performance when evacuating against atmosphere. Their powerful IPM1) synchronous motors with sensor less INFORM® control2) achieve up to 15% higher efficiency compared to conventional drives. This enables maximum performance at low temperatures, resulting in more efficient cooling of compact systems and equipment. All orders include the  RS-PV-P4564309ZE 110 volts mains plug to your order.

HiScroll Support Documents

Pfeiffer HI Scroll Operation Manual

Pfeiffer Vacuum Products-Duo Pumps

Pfeiffer Duo Rotary Pumps

Rave Scientific offers the Pfeiffer Duo two-stage high-performance rotary vane pumps. The Duo Rotary Pumps cover all low and medium vacuum applications, achieving pumping speeds of 1.25 to 300 m3/h. Applications range from mass spectrometry or optical coating to critical industrial applications such as drying processes, metallurgical processes or resin casting systems. The DUO 1.6 M model uses a magnetic coupling between the motor and the pumping mechanism. That means there’s no direct shaft seal between the motor and the vacuum chamber.The standard DUO 1.6 has a conventional shaft seal to drive the pump.



Advantages of Magnetic Coupling vs Standard Shaft Seal

• Reduced Leakage Risk: The magnetic coupling significantly reduces the chance of oil leakage through a mechanical shaft seal — good for cleaner operation and when pumping sensitive gases.
• Lower Wear on Seals: Fewer moving seals usually means lower maintenance and potentially longer service life, especially under frequent start/stop or harsh use conditions.
• Performance Otherwise Similar: Both pumps share the same nominal pumping speed (~1.25 m³/h at 50 Hz, ~1.5 m³/h at 60 Hz), similar ultimate pressures (~3×10⁻³ mbar), gas ballast, safety valve, and overall design.

Pfeiffer Vacuum Products-Pascal Pumps

Pfeiffer Pascal Rotary Pumps

The Pfeiffer Two-stage Pascal rotary vane pumps are the result of decades of experience in the design and industrial production of vacuum pumps. The number of pumps used worldwide exceeds 500,000 units. They are distinguished by their high quality and reliability and are ideal for low to medium vacuum requirements addressing the following common applications:    ■ Electron microscopy■ Residual gas analysis■ Hard disk coating■ Wear protection■ CD, DVD, Blu-ray production ■ Optical coatings■ Vacuum drying■ Space simulation■ Medical applications

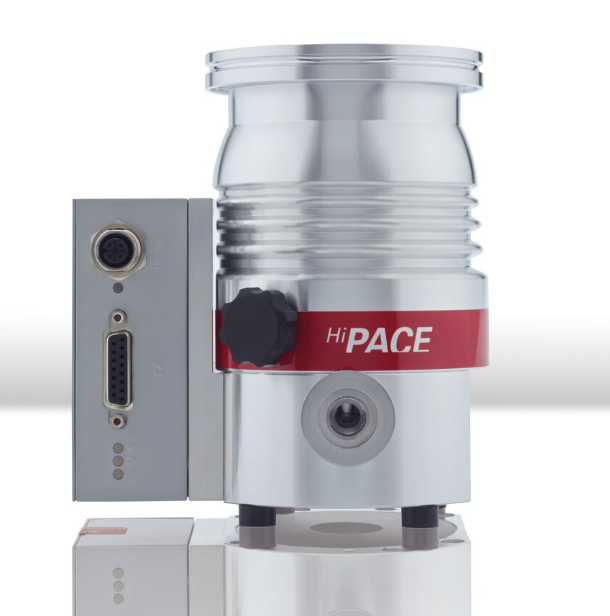

Pfeiffer Hi Pace 80 Turbo Molecular Pumps

Pfeiffer Hi Pace 80 Turbo Molecular Pumps

Pfeiffer offers turbo pumps with the highest level of compression available. The high compression ratio results in a low residual gas background in the chamber, which is desirable for applications such as mass spectrometry. Rave Scientific offers the Hi PACE 80 small compact turbo molecular pump with TC 110 integrated drive electronics.  Here are some features:

• The Hi Pace 80 is a small yet powerful turbo pump
• The Hi Pace 80 has Integrated TC 110 drive electronics
• For installation in any orientation
• Ideal for dependable systems integration
• Extensive accessories expand the range of applications
• Downloads
• Pfeiffer Hi Pace Operations Manual
• Pfeiffer Hi Pace Turbo Pump Brochure

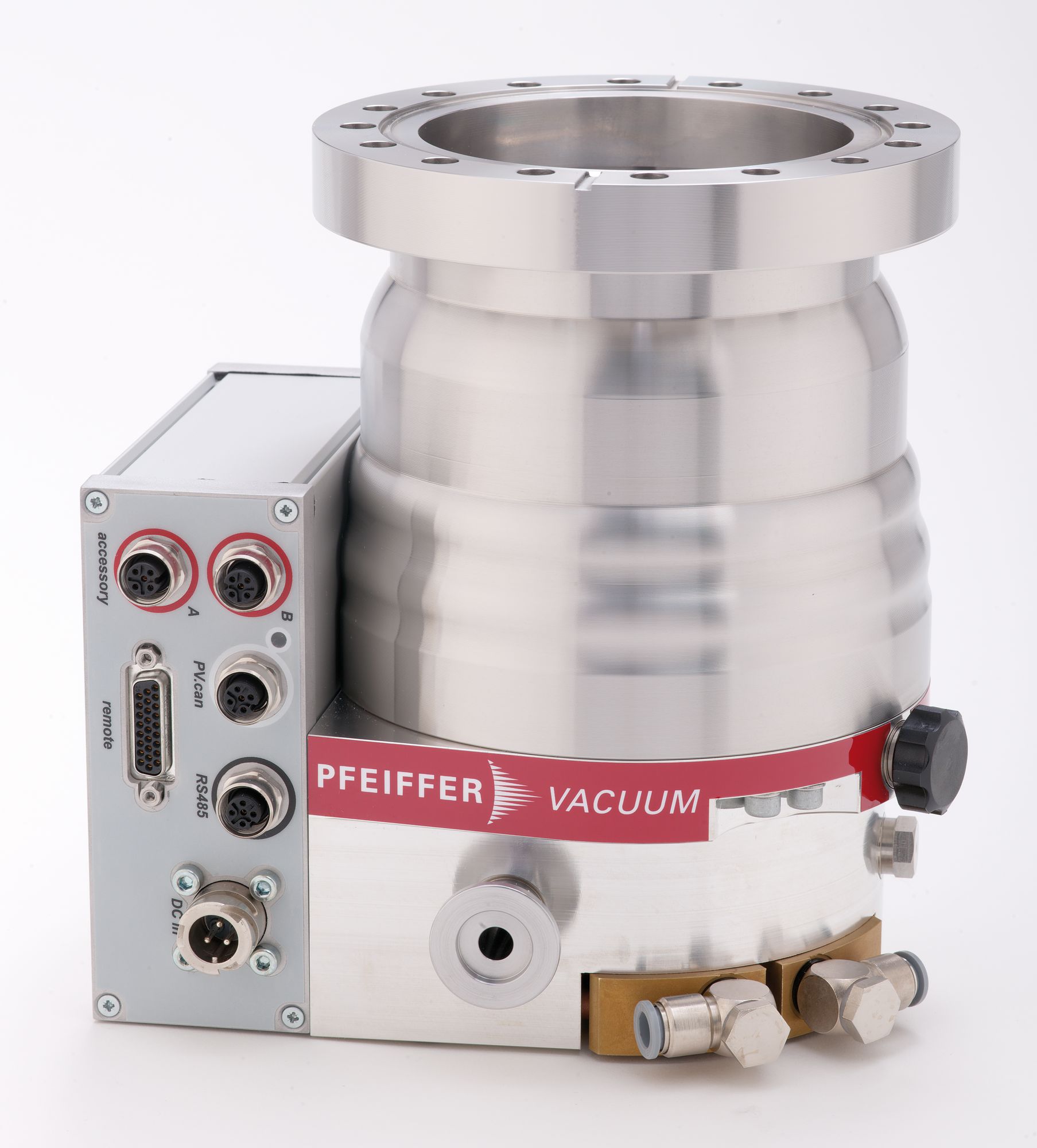

Pfeiffer Hi Pace 300 Turbo Molecular Pumps

Pfeiffer Hi Pace 300 Turbo Molecular Pumps

Rave Scientific offers the Hi PACE 300 turbo molecular pump. The Pfeiffer Hi Pace 300 is a rugged, powerful turbo pump with a pumping speed of up to 260 I/s for N2. It features hybrid bearing technology and integrated TC 400 drive electronics. The integrated drive electronics prevent costly cabling. The electronic drive unit automatically regulates the drive power down in the event of excessive temperatures.

• For installation in any orientation
• Ideal for dependable systems integration
• Extensive accessories expand the range of applications
• Downloads
• Pfeiffer Turbo Pump Brochure
• Pfeiffer Hi Pace 300 Operations Manual

Pfeiffer HiCube Pumping Stations

  Pfeiffer HiCube Pumping Stations

The HiCube Classic pumping stations are suitable for all high and ultra high vacuum applications and are available with dry and oil-sealed backing pumps having pumping speeds of up to 685 l/s. Available for selection as backing pumps are dry diaphragm pumps with pumping speeds of up to 4.3 m³/h or rotary vane pumps with pumping speeds of up to 6 m³/h. Rave Scientific offers the Hi Pace 80 and Hi Pace 300 turbo pump stations with multiple flange options

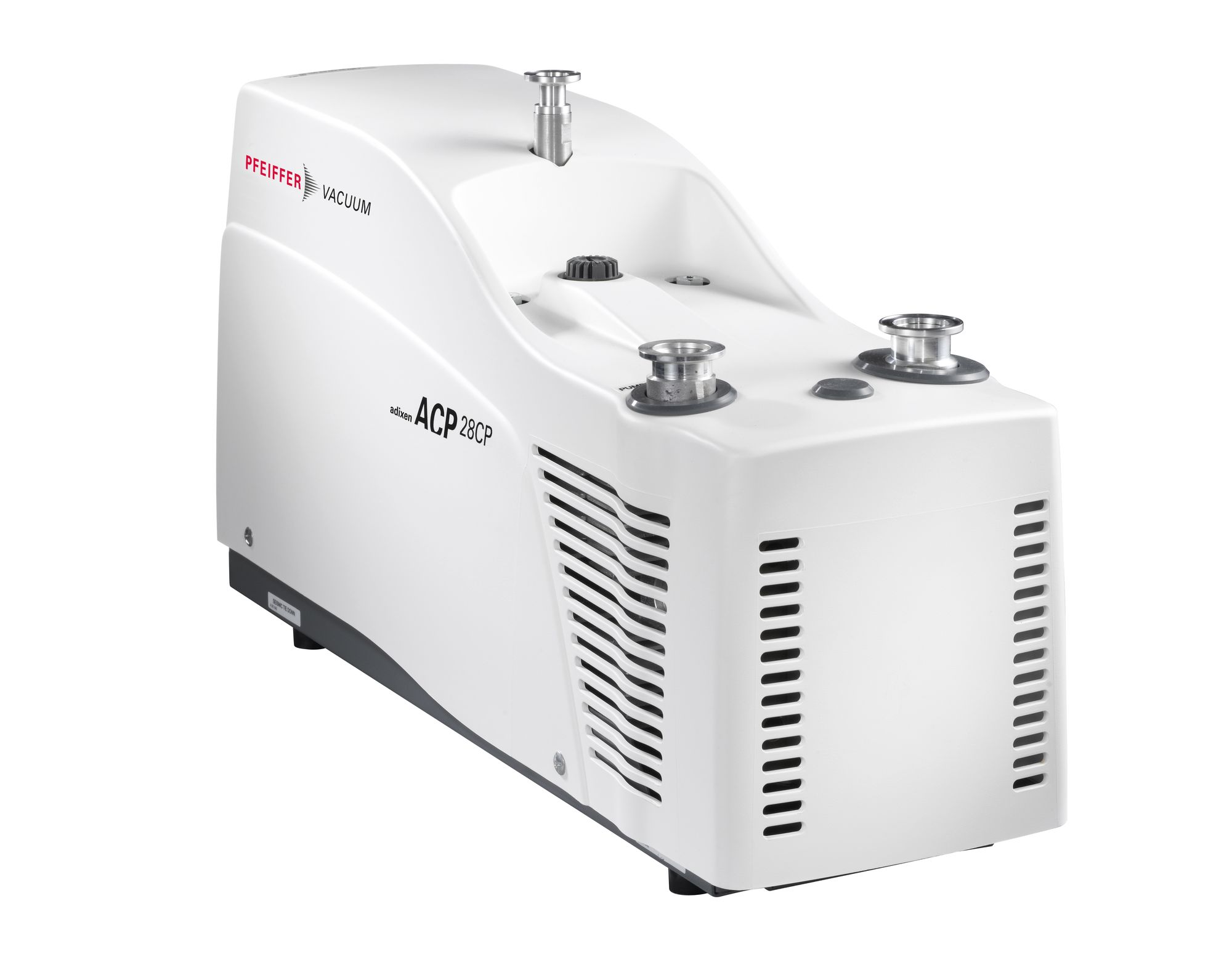

Pfeiffer ACP standard, single phase, manual gas ballast pumps

Pfeiffer ACP standard, single phase, manual gas ballast pumps

Rave Scientific offer the Pfeiffer ACP 15, 28 and 40 dry compact multi-stage root pumps. The pumping technology is based on a frictionless multi-stage roots design.  The benefits of multi-roots dry pumps include oil-free and particulate-free dry vacuum, e.g., unlike their counterparts, the dry scroll pumps which generate tip seal dust and the oil-sealed rotary vane pumps which suffer from hydrocarbon vapor back streaming.

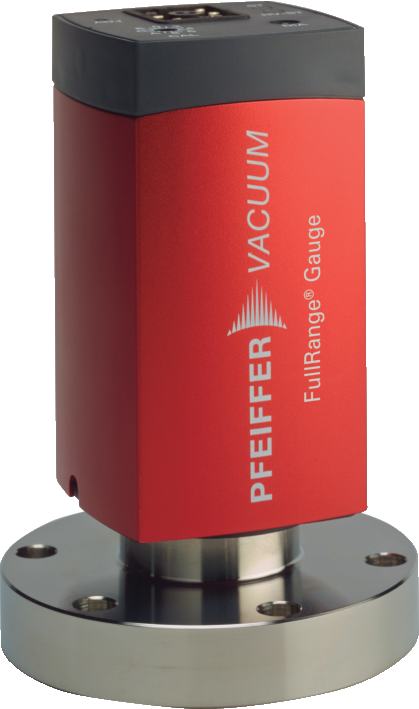

Pfeiffer The ActiveLine Wide Range gauges

Pfeiffer The ActiveLine Wide Range gauges

Rave Scientific offers the Pfeiffer The ActiveLine Wide Range gauges-the total pressure vacuum gauge with analog signal outlet The ActiveLine series offers a wide range of vacuum gauges that work on a variety of measuring principles and have a classic analog outlet. The series thus covers the technically relevant vacuum range from ultra-high vacuum to overpressure. The outlet voltage of the transmitter, which is proportional to the pressure, can be displayed as pressure on the three controllers or read into controllers through analog inputs for further processing.

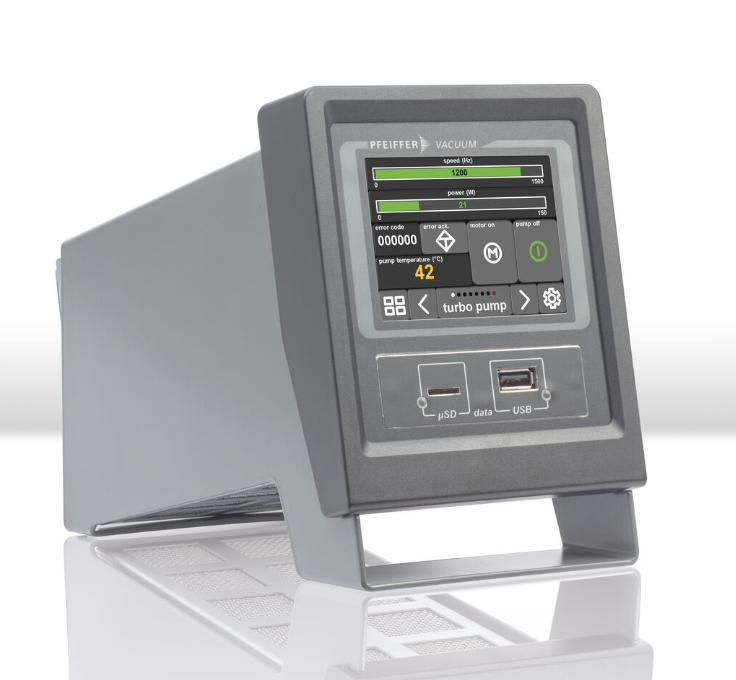

Pfeiffer Turbo Controllers

Pfeiffer Turbo Controllers

Rave Scientific offers the Pfeiffer OmniControl 200, table unit with integrated power supply pack for the Pfeiffer Hi Pace 300H and Hi Pace 80 turbo pumps. The Omnicontrol 200 offers:

• Universal control device for all products with Pfeiffer Vacuum RS-485-Protocol
• Easy operation via 3.5'' touch display
• Uncomplicated data collection and processing between the Pfeiffer Vacuum devices
