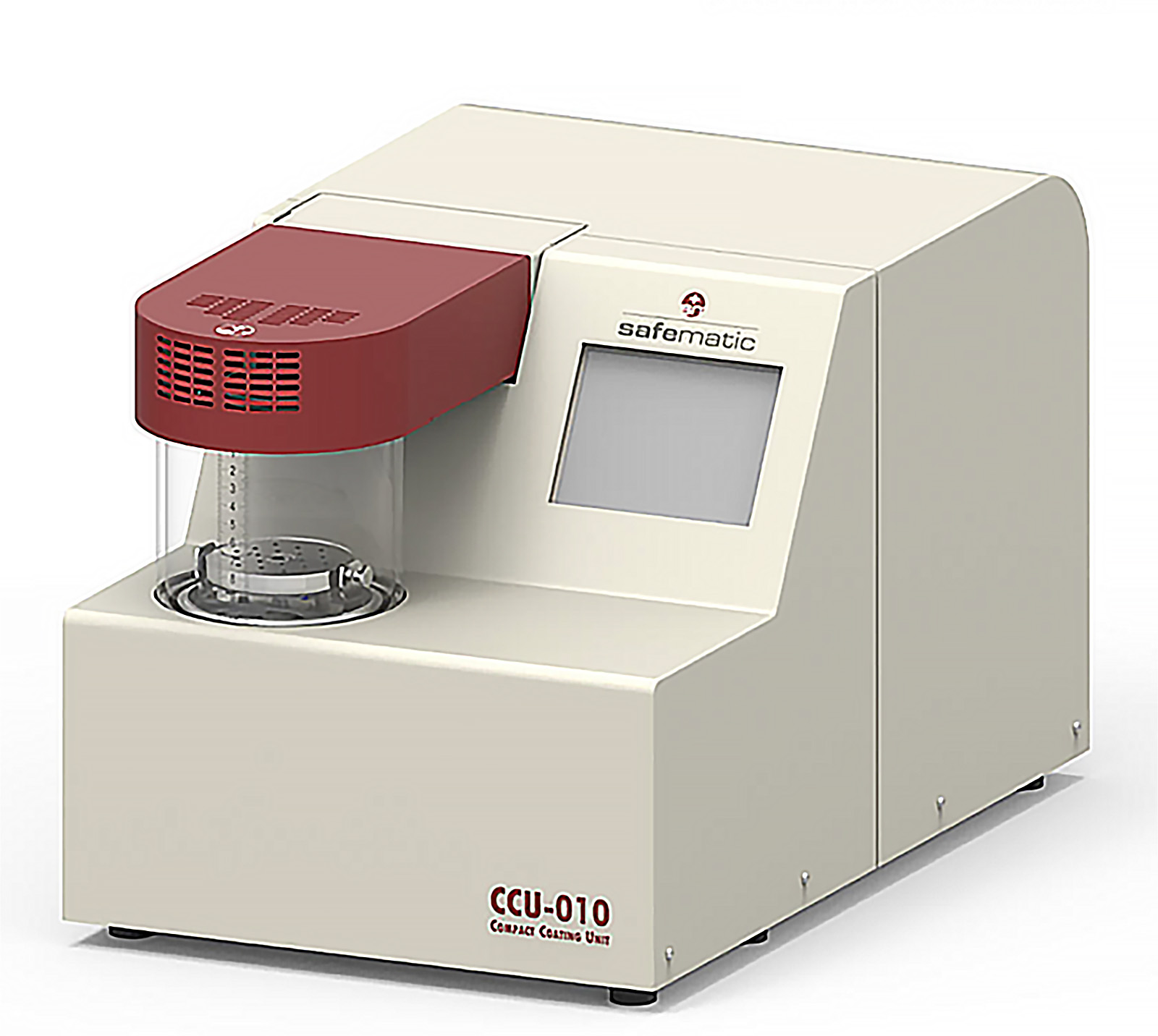

Safematic CCU-010-Coating System Supplies
Rave Scientific offers all required consumables and supplies for the Safematic SEM Sputter and Carbon Coating system. The Safematic sputter coating system requires 54mm diameter sputter targets and the automated carbon threading system spools of carbon in 1 and 2 meter length.
Safematic carbon thread spools are designed specifically for the Safematic Automatic Carbon Threading Unit The spools come in 1 and 2 meter spools and is Grade CT7. This is a medium carbon fiber thread with a diameter of 1.3mm and a weight of 0.7g/m
|Safematic High purity carbon thread on coil,grade CT16 for carbon evaporation,pack/2 mtr||RS-SM-300015||$119.95 each|
Ø54mm disc type sputter targets for Safematic sputter coaters
|Iridium Target, Ø54 x 0.3mm Disc, 99.99% Ir||RS-RSI-70-IR5412||$6,325.00 each|
|Chromium Target, Ø54 x 0.5mm Disc, 99.95% Cr||RS-RSI-70-CR5420||$495.00 each|
|Titanium Target, Ø54 x 0.25mm Disc, 99.6+% Ti||RS-RSI-70-TI5410||$140.00 each|
|Platinum Target, Ø54 x 0.2mm Disc, 99.99% Pt||RS-RSI-70-PT5408||$1,236.00 each|
|Platinum Target, Ø54 x 0.1mm Disc, 99.99% Pt||RS-RSI-70-PT5404||$744.00 each|
|Platinum/Palladium Target, Ø54 x 0.2mm Disc, 80/20 Pt/Pd 99.99% Pt/Pd||RS-RSI-70-PP5408||$1,188.00 each|
|Platinum/Palladium Target, Ø54 x 0.1mm Disc, 80/20 Pt/Pd 99.99% Pt/Pd||RS-RSI-70-PP5404||$726.00 each|
|Palladium Target, Ø54 x 0.1mm Disc, 99.99% Pd||RS-RSI-70-PD5404||$495.00 each|
|Nickel Target, Ø54 x 0.075mm Disc, 99.98% Ni||RS-RSI-70-NI5403||$175.00 each|
|Silver Target, Ø54 x 0.25mm Disc, 99.97% Ag||RS-RSI-70-AG5410||$275.00 each|
|Gold Target, Ø54 x 0.2mm Disc, 99.99% Au||RS-RSI-70-AU5408||$1,185.00 each|
|Copper Target, Ø54 x 0.25mm Disc, 99.99% Cu||RS-RSI-70-CU5410||$160.00 each|
|Gold Target, Ø54 x 0.1mm Disc, 99.99% Au||RS-RSI-70-AU5404||$595.00 each|
|Gold/Palladium Target, Ø54 x 0.2mm Disc, 80/20 Au/Pd, 99.99% Au/Pd||RS-RSI-70-AP5409||$1,095.00 each|
|Gold/Palladium Target, Ø54 x 0.2mm Disc, 60/40 Au/Pd, 99.99% Au/Pd||RS-RSI-70-AP5408||$1,095.00 each|
|Gold/Palladium Target, Ø54 x 0.1mm Disc, 80/20 Au/Pd, 99.99% Au/Pd||RS-RSI-70-AP5405||$595.00 each|
|Gold/Palladium Target, Ø54 x 0.1mm Disc, 60/40 Au/Pd, 99.99% Au/Pd||RS-RSI-70-AP5404||$595.00 each|
|Aluminum Target, Ø54 x 0.25mm Disc, 99.999% Al||RS-RSI-70-AL5410||$150.00 each|
|Aluminum Sputter Target 54mm x 1mm thick||RS-SM-30089||$325.00 each|
|Tungsten Sputter Target 54mm x 1mm thick||RS-SM-300008||$250.00 each|
|Gold Target, Ø54 x 0.3mm Disc, 99.99% Au||RS-RSI-70-AU5412||$1,554.00 each|
|Palladium Target, Ø54 x 0.2mm Disc, 99.99% Pd||RS-RSI-70-PD5408||$1,295.00 each|
|Iron Target, Ø54 x 0.1mm, 99.5% Fe||RS-RSI-70-FE5404||$165.00 each|
|Zinc Target, Ø54 x 0.5mm Disc, 99.5% Zn||RS-RSI-70-ZN5420||$55.00 each|
|Zinc Target, Ø54 x 0.20mm Disc, 99.5% Zn||RS-RSI-70-ZN5408||$45.00 each|
|Cobalt Target, Ø54 x 0.1mm Disc, 99.99% Cr||RS-RSI-70-CO5404||$450.00 each|
|Cobalt Target, Ø54 x 0.5 mm Disc, 99.99% Cr||RS-RSI-70-CO5420||$475.00 each|
|ITO target 54mm x 2mm thickness (ITO 90/10, 99.99%||RS-SM-300012||$625.00 each|
|Palladium Target, Ø54 x 0.5mm Disc, 99.99% Pd||RS-RSI-70-PD5410||$2,510.00 each|
|Molybdenum Target 99.95% Pure 54mm Diameter x 0.2mm Thick||RS-RSI-70- MO5408||$257.85 each|
|Iridium Target, Ø54 x 0.1mm Disc, 99.99% Ir||RS-RSI-70-IR5404||$3,395.00 each|
|Indium Sputter Target, Ø54 x 0.2mm Disc, 99.99% In||RS-RSI-70-IN5408||$179.00 each|
Safematic Quartz Crystal monitors are designed to measure coating thickness accurately and are to be replaced periodically and come in a pack of 10.
|Safematic Electrode Quartz Crystals for thickness monitors/controllers, pkg/10||RS-SM-300016||$126.67 each|
The Safematic HS-010 vacuum storage box allows you to keep a second coating unit for your CCU-010 compact coating unit, an additional planetary or rotary stage and the full range of sputtering targets and carbon thread always clean under vacuum. An integrated pump line attachable to the basic unit pumps down the storage box to vacuum using the available pumping system of the CCU-010. A comfortable and easy to use manual lock and vent valve allows the independent pump and vent control of the storage box.
The Safematic ST-010 specimen stage for two microscopy slides 76 x 26mm or one slide 76 x 52mm. Includes six mounting clips and two film thickness quartz monitor positions.
|Safematic ST-010 specimen stage for microscopy slides||RS-SM-1000088||$500.00 each|
The Safematic rotary table is attached to the existing stage of the basic unit. An automatic table recognition and speed control of rotation 0 to 100 % is integrated into the software of the basic unit. The table can hold a total of 20 sample stubs. Simultaneous placement of 5 large stubs with a diameter of 25.4 mm or 10 small stubs with a diameter of 12.7 mm is possible. The table is integrated with a film thickness monitor.
The Safematic planetary stage gear table is attached to the existing stage of the basic unit. A film thickness monitor is fitted as standard which will precisely monitor and control film thickness of carbon and metal films. An automatic table recognition and speed control of 0 to 100% is integrated into the software of the basic unit. The table can hold a total of 6 sample stubs. The basic table turns clockwise, the 6 sample stub holders turn anti-clockwise.
Safematic glass chamber with a scale bar acts as a user guide to adjusting working distance and sealing vacuum around the sample coating area.
The Safematic Windows software Coating LAB allows you to visualize process pressure, current, voltage, coating rate, coating thickness and sample temperature as real-time curves. The integrated export function saves the values in an image format or as an Excel file, enabling you to process the data further. Apart from the real-time curves, you can use the history function to import from the device and display the process details of the last ten coatings.
The following cleaning supplies can aid in the various cleaning requirements for the Safematic Coating system. Wenol Metal Polish has been favored by many microscopists for cleaning and polishing parts for electron microscopes and used to be a mainstay in EM labs. Bell Jar Polish can assist in cleaning the Glass Chamber, Lint Free cloths, applicators and wooden sticks will facilitate the cleaning process.
|Wenol metal cleaner and polish, 100ml tube||RS-MN-53-000100||$15.99 each|
|EM-Tec Bell Jar Polish, pkg/200g||RS-MN-53-000200||$11.99 each|
|PIKAL professional metal polishing paste, 250g tin||RS-MN-53-000250||$37.32 each|
|Cotton tipped applicator stick, single ended, round tip, wood shaft, 150mm, pkg/500||RS-MN-52-005012||$6.65 each|
|PEC-PAD Lint Free Wipes 4"x4" 100per/Pkg||RS-AZ-PED-PAD-LINT||$14.75 each|
