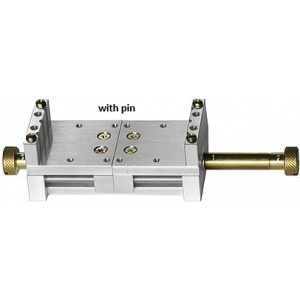

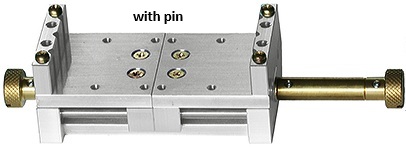

EM-Tec CV2 centering vise SEM sample holder for up to 114mm, pin RS-MN-12-000202

EM-Tec CV2 large centering vise with a clamping capacity from 0-114mm. Clamping size can be increased to 155mm with the optional EM-Tec CVE2 extension pIates. Includes two standard triple grooved/smooth clamping jaws which are positionable on the baseplate. The EM-Tec-CV2 centering vise can be operated from both sides; two knurled handles are provided. For ease of operation a removable spindle extension is include with the centering vise. Overall size closed is 106x40x34mm, overall size open is 122x40x34mm. M4 threaded hole in the base for Hitachi SEMs and the versatile EM-Tec stage SEM stage adapters.
