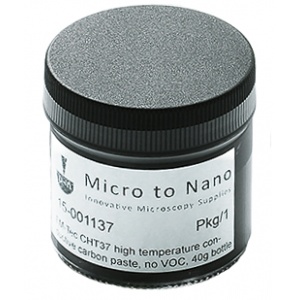

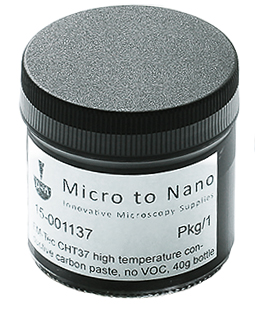

EM-Tec CHT37 high temperature conductive carbon filled paste, water based, no VOC, 40g bottle RS-MN-15-001137

EM-Tec CHT37 is an unique carbon filled inorganic silicate adhesive, especially developed for high temperature applications up to 2000°C . The fine graphite flakes are fully mixed with water based silicate solution. It is a one component system without any VOC’s. EM-Tec CHT-37 is ideally suited use with heating stages used with systems such as SEM, FIB, SIMS, AUGER or XPS (ESCA). It is also most suitable for heating experiments and high vacuum applications where electrical and thermal conductivity are needed

Features of the EM-Tec CHT37 high temperature conductive carbon paste:

High service (use) temperature – up to 2000°C.
Inorganic silicate solution with graphite – no hydrocarbons, no VOC’s; suitable for UHV applications
One component system – no mixing requirement
Electrically and thermally conductive
Low temperature capability after cure – can be used at cryo temperature but bond integrity depends on thermal expansion coefficient of the different materials
Thick paste ((20,000-30,000 cP) – viscosity can be reduced by adding water
