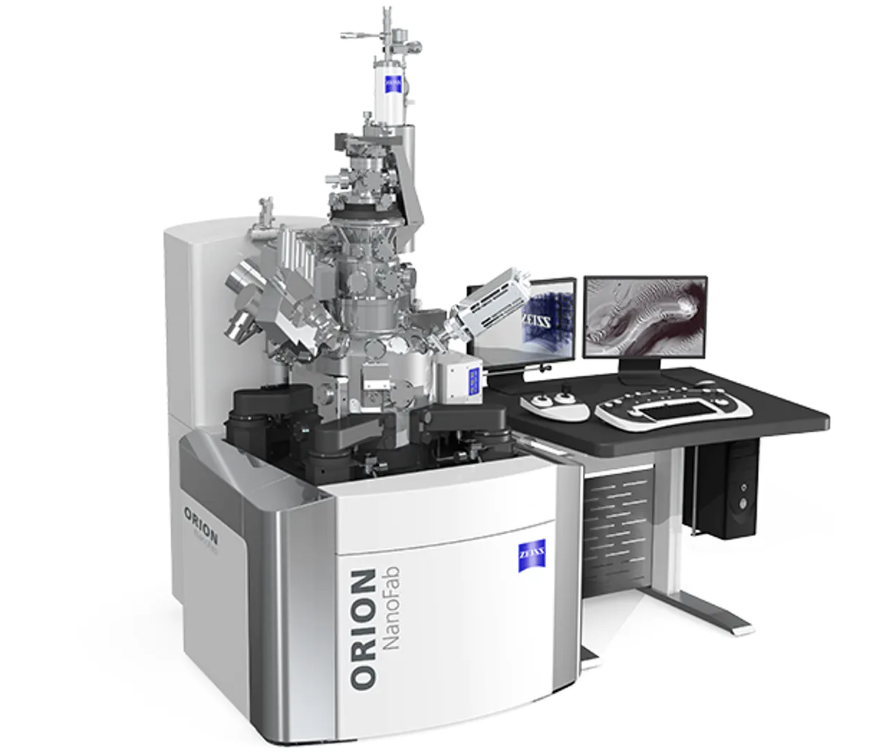

ZEISS ORION NANOFAB

Fabricate sub-10nm Nanostructures with Speed and Precision by seamlessly switching between gallium, neon and helium beams with ORION NanoFab:

  • Use the neon beam to machine nano structures at great speed and achieve high throughput
  • Use the helium beam to create delicate sub-10 nm structures
  • Use optional gallium FIB to remove massive material.
  • With the ORION NanoFab you profit from the only system in the world that covers the complete range of micro machining to nano machining applications using gallium, neon and helium ion beams integrated in a single instrument

Fabricate sub-10 nm nano structures with speed and precision with your ORION NanoFab. Use its neon beam to machine nano structures at great speed and achieve high throughput. Use the helium beam to create delicate sub-10 nm structures that demand extremely high machining fidelity. Equip your ORION NanoFab with the optional gallium FIB column and it becomes one of a kind: the only system in the world that covers the complete range of micro machining to nano machining applications using gallium, neon and helium ion beams integrated into a single instrument.

Highlights

  • Fast machining of sub-10 nm structures

Use neon and helium ion beams to create delicate sub-10 nanometer structures that demand extremely high machining fidelity. Whether your application is material removal using sputtering, gas induced etching or deposition or lithography, ORION NanoFab excels in sub-10 nm fabrication with speed and ease.

  • Three beams in one instrument

Use gallium FIB to remove massive material. Take advantage of the neon beam for precision nanomachining with speed or use the helium beam to fabricate delicate sub-10 nm structures. With neon and helium ion beams you avoid deposit contamination.

  • High resolution imaging

With imaging resolution of 0.5 nm, ORION NanoFab generates high resolution images of your sample in the same instrument that you used for fabrication. Gain new insights with images that have 5 to 10 times greater depth of field when compared to images acquired with FE-SEMs.

Nanopatterning

ORION NanoFab features the Nanopatterning and Visualization Engine - an integrated hardware and software control system. NVPE incorporates a dedicated 16 bit scan generator for each NanoFab column and dual signal acquisition hardware supporting real-time advanced patterning and visualization. Completely control the beam by a GUI: create a range of fully editable shapes including rectangles, trapezoids, polygons, lines, polylines, ellipses and spots. Vectorfill these shapes while maintaining full control over dose variation and patterning parameters.
